NeuralPlane

NeuralPlane rebuilds indoor scenes as arrangements of planar primitives.


Abstract

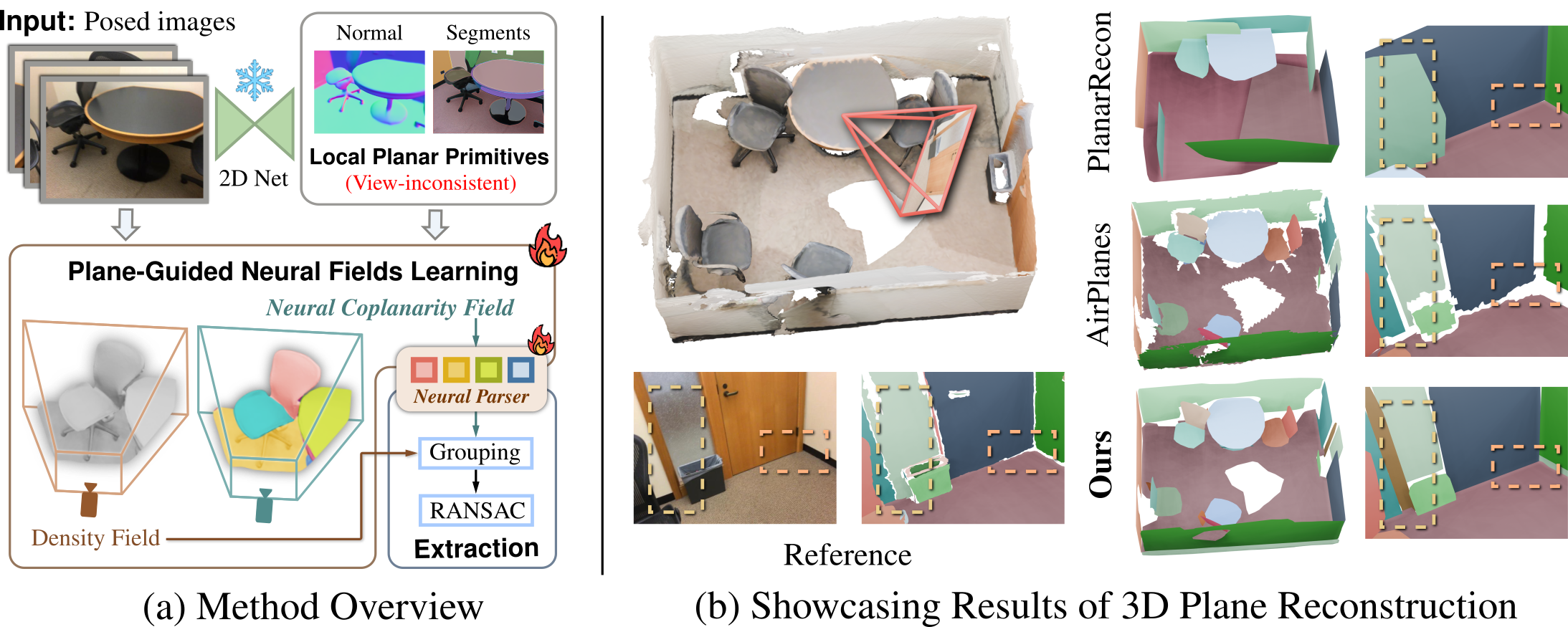

Teaser
3D maps assembled from planar primitives are compact and expressive in representing man-made environments, making them suitable for a spectrum of applications. In this paper, we present NeuralPlane, a novel approach that explores neural fields for multi-view 3D plane reconstruction. Our method is centered upon the core idea of distilling geometric and semantic cues from inconsistent 2D plane observations into a unified 3D neural representation, which unlocks the full leverage of plane attributes. NeuralPlane realizes this idea via several key designs, including: 1) a monocular module that generates geometrically smooth and semantically meaningful segments as 2D plane observations, 2) a plane-guided training procedure that implicitly learns accurate plane locations from multi-view plane observations, and 3) a self-supervised feature field termed Neural Coplanarity Field that enables the modeling of scene semantics alongside the geometry. Without relying on plane annotations, our method achieves high-fidelity reconstruction comprising planar primitives that are not only crisp but also well-aligned with the semantic content. Comprehensive experiments on ScanNetv2 and ScanNet++ demonstrate the superiority of our results in both geometry and semantics

ScanNetv2

Reference

Choose a result from

Ours

Reference

Choose a result from

Ours

ScanNet++

Reference

Choose a result from

Ours

Reference

Choose a result from

Ours


BibTex Citation

@inproceedings{
    ye2025neuralplane,
    title={NeuralPlane: Structured 3D Reconstruction in Planar Primitives with Neural Fields},
    author={Hanqiao Ye and Yuzhou Liu and Yangdong Liu and Shuhan Shen},
    booktitle={The Thirteenth International Conference on Learning Representations},
    shorttitle={neuralplane},
    year={2025},
    url={https://openreview.net/forum?id=5UKrnKuspb}
  }
